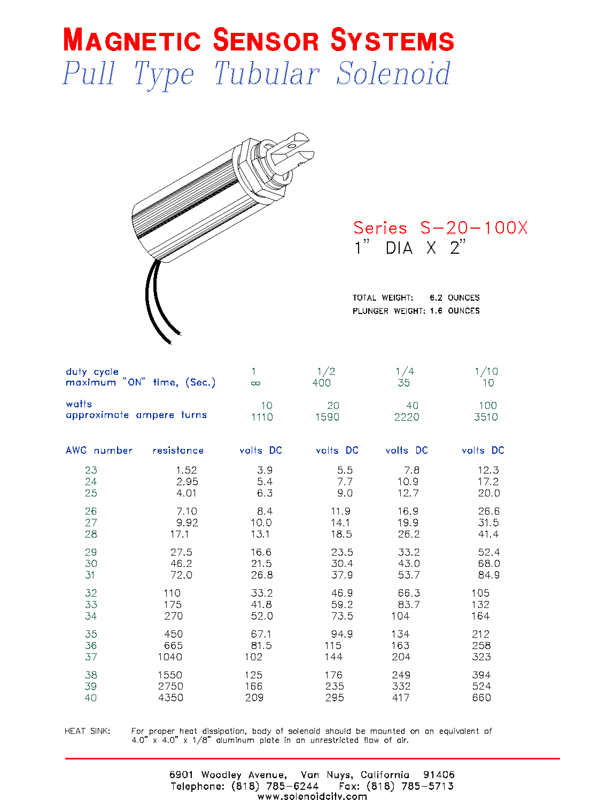

Tubular Pull Type Solenoid     S-20-100-X    Rev. 01-01-05    Page 1     Magnetic Sensor Systems              Made in USA

Tubular Pull Type Solenoid  S-20-100-X  Page 1

All values for solenoids are provided at 25ºC. A force safety factor must be considered due to effects of temperature. Please visit Temperature to find the effects of temperature on solenoids.

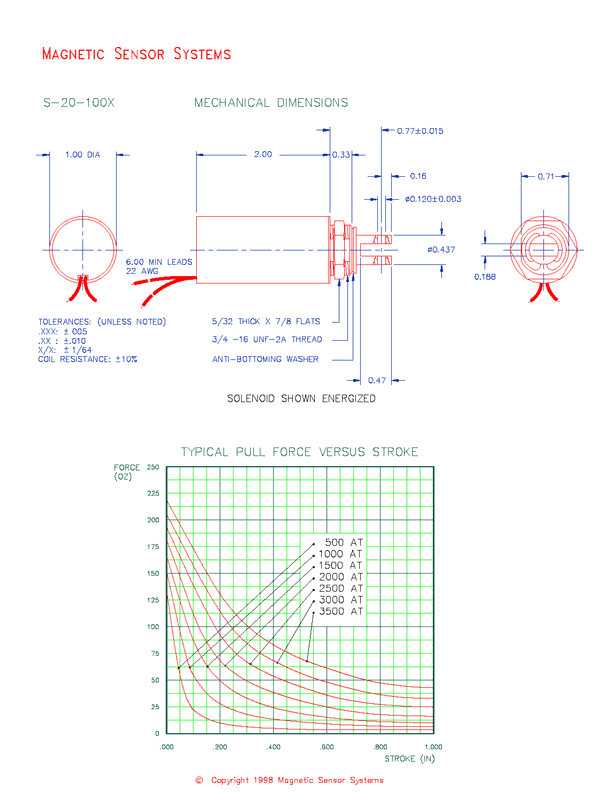

Tubular Pull Type Solenoid     S-20-100-X    Rev. 01-01-05    Page 2     Magnetic Sensor Systems
Tubular Pull Type Solenoid  S-20-100-X  Page 2

Further information about solenoids and their usage may be found at Solenoid Construction, Selection Factors, Minimizing Energy Consumption.
The glossary of terms usesd in the specifications for solenoids may be found at Definition of Terms.
