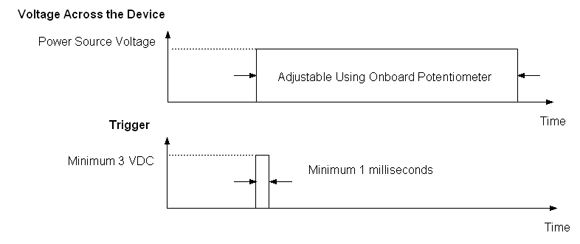

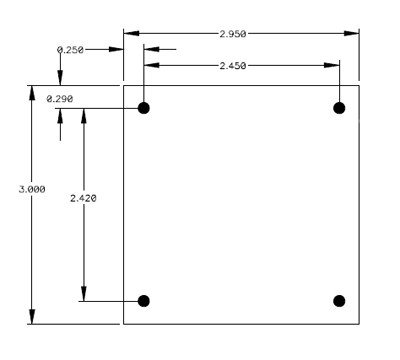

The Pick and Drop Timer Driver Module; PDM950, applies a single pulse to the solenoid or electromagnet, then drops the supply voltage to zero. This is done by applying a signal to the trigger input of the module. The trigger voltage could be a TTL / CMOS compatible signal or any voltage between 2.5 VDC and the DC power source supply voltage . The pick time is set using an onboard potentiometer and can be adjusted between 2 milliseconds and one minute. |
|
|
|
Parameter |
Min |
Typical |
Max |
Units |
|
Supply Input Voltage (Vcc) |
9 |
|
50 |
VDC |
|
Peak Current |
|
|
15 |
A |
|
RMS Current * |
|
4 |
A |
|
|
Command (Trigger) Range |
2.5 |
|
Vcc |
VDC |
|
Operating Temperature |
0 |
|
50 |
Deg C |
|
Storage Temperature |
-40 |
|
125 |
Deg C |
