S-63-38
Pull Type Solenoids

0.38" DIA X 0.66" L
(9.6 mm X 16.7 mm)


S-63-38

S-63-38-H
Push Type Solenoids

0.38" DIA X 0.66" L
(9.6 mm X 16.7 mm)


S-63-38-H

S-69-38
Pull Type Solenoids

0.38" DIA X 0.69" L
(9.6 mm X 17.5 mm)


S-69-38

S-69-38-H
Push Type Solenoids

0.38" DIA X 0.69" L
(9.6 mm X 17.5 mm)


S-69-38-H

S-10-38
Pull Type Solenoids

0.38" DIA X 1.00" L
(9.6 mm X 25.4 mm)


S-10-38

S-10-38-H
Push Type Solenoids

0.38" DIA X 1.00" L
(9.6 mm X 25.4 mm)


S-10-38-H

S-10-50
Pull Type Solenoids

0.50" DIA X 1.00" L
(12.7 mm X 25.4 mm)


S-10-50

S-10-50-H
Push Type Solenoids

0.50" DIA X 1.00" L
(12.7 mm X 25.4 mm)


S-10-50-H

S-16-50
Pull Type Solenoids

0.50" DIA X 1.63" L
(12.7 mm X 41.4 mm)


S-16-50

S-16-50-H
Push Type Solenoids

0.50" DIA X 1.63" L
(12.7 mm X 41.4 mm)


S-16-50-H

S-15-50-A
Pull Type Solenoids

0.50" DIA X 1.60" L
(12.7 mm X 40.6 mm)


S-15-50-A

S-15-75
Pull Type Solenoids

0.75" DIA X 1.50" L
(19.1 mm X 38.1 mm)


S-15-75

S-15-75-H
Push Type Solenoids

0.75" DIA X 1.50" L
(19.1 mm X 38.1 mm)


S-15-75-H

S-20-90
Pull Type Solenoids

0.90" DIA X 2.00" L
(23.0 mm X 50.8 mm)


S-20-90

S-20-90-H
Push Type Solenoids

0.90" DIA X 2.00" L
(23.0 mm X 50.8 mm)


S-20-90-H

S-20-100
Pull Type Solenoids

1.00" DIA X 2.00" L
(25.4 mm X 50.8 mm)


S-20-100

S-20-100-X
Pull Type Solenoids

1.00" DIA X 2.00" L
(25.4 mm X 50.8 mm)


S-20-100-X

S-20-100-H
Push Type Solenoids

1.00" DIA X 2.00" L
(25.4 mm X 50.8 mm)


S-20-100-H

S-20-125
Pull Type Solenoids

1.25" DIA X 2.00" L
(31.8 mm X 50.8 mm)


S-20-125

S-20-125-H
Push Type Solenoids

1.25" DIA X 2.00" L
(31.8 mm X 50.8 mm)


S-20-125-H

S-25-125
Pull Type Solenoids

1.25" DIA X 2.50" L
(31.8 mm X 63.5 mm)


S-25-125

S-25-125-H
Push Type Solenoids

1.25" DIA X 2.50" L
(31.8 mm X 63.5 mm)


S-25-125-H

S-22-150
Pull Type Solenoids

1.50" DIA X 2.19" L
(38.1 mm X 55.6 mm)


S-22-150

S-22-150-H
Push Type Solenoids

1.50" DIA X 2.19" L
(38.1 mm X 55.6 mm)


S-22-150-H

S-22-150-HF
Push Type Solenoids

1.50" DIA X 2.19" L
(38.1 mm X 55.6 mm)


S-22-150-HF

S-29-150
Pull Type Solenoids

1.50" DIA X 2.85" L
(38.1 mm X 72.4 mm)


S-29-150

S-29-150-H
Push Type

1.50" DIA X 2.85" L
(38.1 mm X 72.4 mm)


S-29-150-H

S-29-150-HF
Push Type Solenoids

1.50" DIA X 2.85" L
(38.1 mm X 72.4 mm)


S-29-150-HF

S-22-200
Pull Type Solenoids

2.00" DIA X 2.19" L
(50.8 mm X 55.6 mm)


S-22-200

S-22-200-H
Push Type Solenoids

2.00" DIA X 2.19" L
(50.8 mm X 55.6 mm)


S-22-200-H

S-29-200
Pull Type Solenoids

2.00" DIA X 2.85" L
(50.8 mm X 72.4 mm)


S-29-200

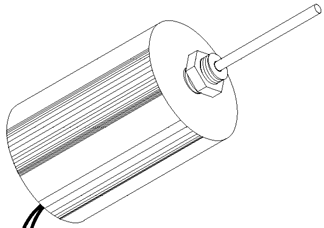

S-29-200-H
Push Type Solenoids

2.00" DIA X 2.85" L
(50.8 mm X 72.4 mm)


S-29-200-H

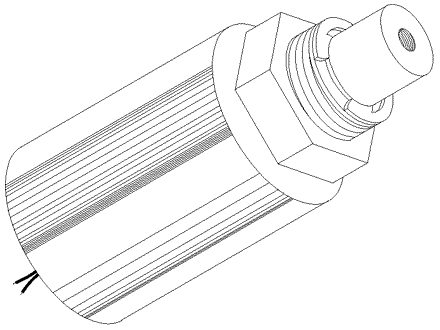

S-41-300
Pull Type Solenoids

3.00" DIA X 4.13" L
(76.2 mm X 104.9 mm)


S-41-300

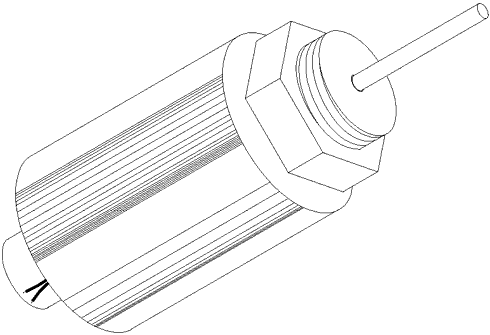

S-41-300-H
Push Type Solenoids

3.00" DIA X 4.13" L
(76.2 mm X 104.9 mm)


S-41-300-H

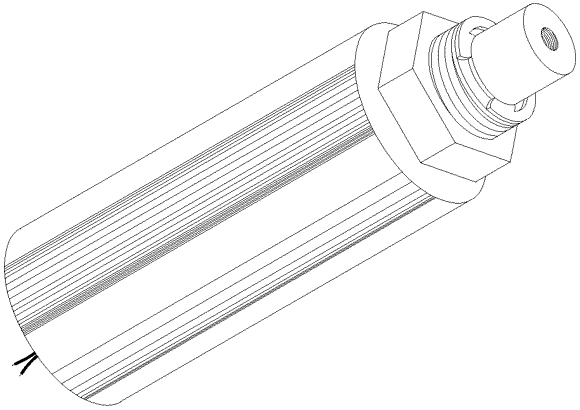

S-70-300
Pull Type Solenoids

3.00" DIA X 7.00" L
(76.2 mm X 177.8 mm)


S-70-300

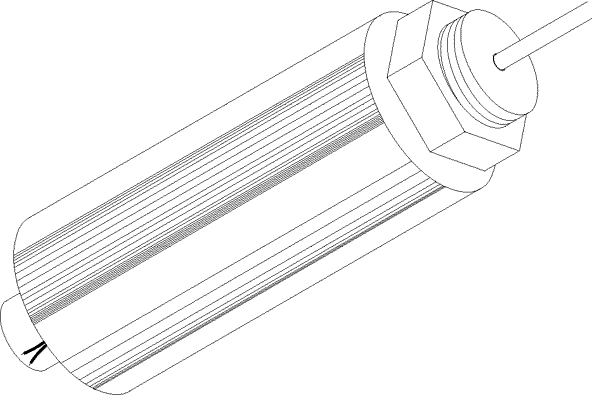

S-70-300-H
Push Type Solenoids

3.00" DIA X 7.00" L
(76.2 mm X 177.8 mm)


S-70-300-H
